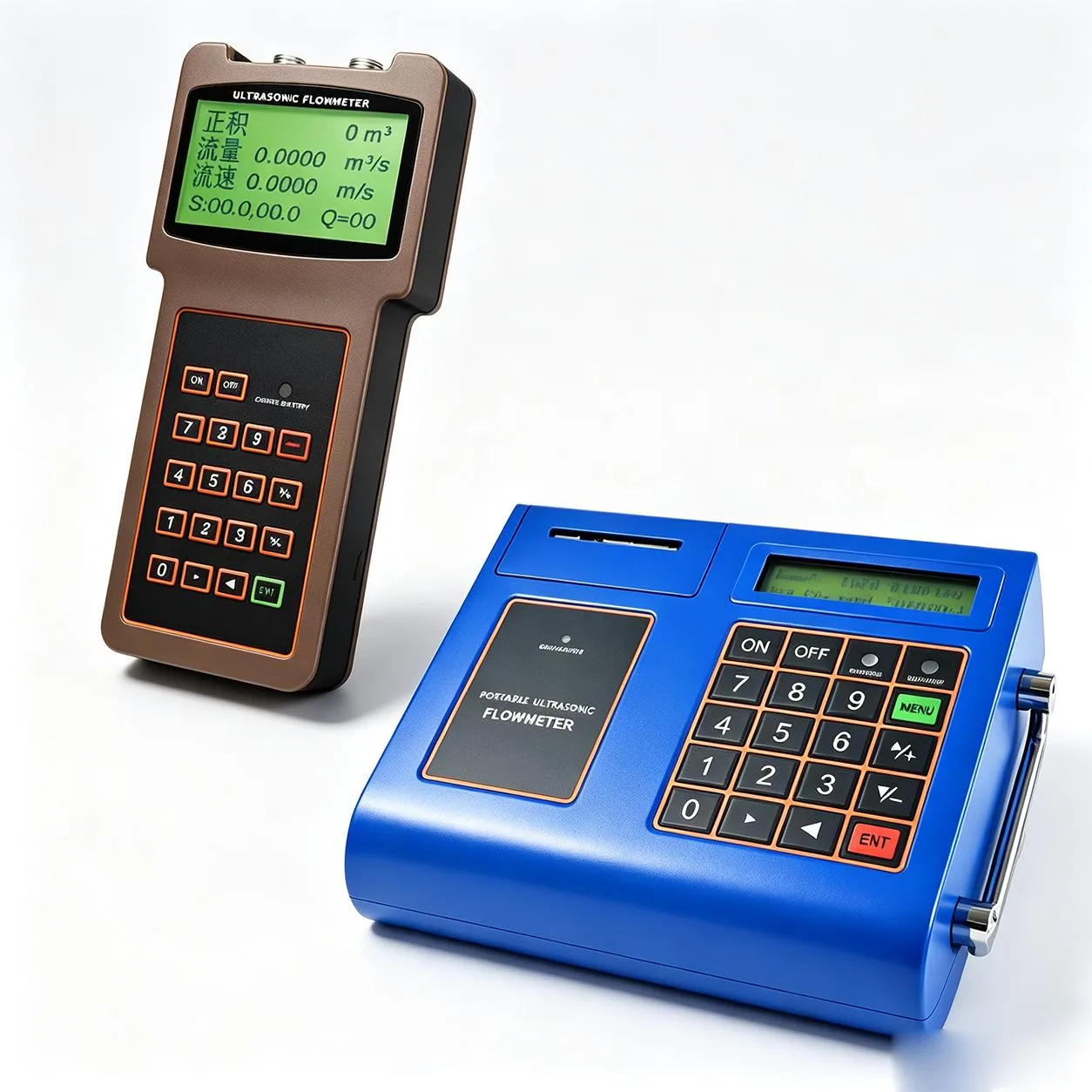

TYCK FLOW U210 Ultrasonic Flowmeter

Product Positioning

Clamp-on, insertion or in-line ultrasonic pipe-flow measurement for homogeneous liquids.

Confirmed Technical Information

Measuring principle	Calculates velocity from upstream/downstream ultrasonic transit-time difference; clamp-on sensors can be installed without cutting the pipe.
Medium	Homogeneous liquids, including non-conductive liquids unsuitable for electromagnetic meters
Output	Not specified in the catalog; confirm by quotation
Communication	Not specified in the catalog; confirm by quotation
Display	Handheld, portable, fixed or in-line by configuration
Confirmed scope	Clamp-on DN15–DN3000; insertion DN50 and above; catalog accuracy varies by construction
Installation and selection	Confirm pipe material, wall thickness, liner, full-pipe condition, straight runs, sensor spacing and mounting surface
Typical applications	Water supply, wastewater, oil, chemical liquids and energy-efficiency testing

Information Required for Selection

• Exact medium and composition, including solids, bubbles or contamination
• Minimum, normal and maximum flow; pipe size and operating/limit pressure and temperature
• Accuracy, installation, connection, supply, output, communication, ingress and hazardous-area requirements
• Quantity, delivery, calibration or verification requirements; models without a formal price list are quoted in writing

This page uses only the company-supplied TYCK FLOW catalog and retained verified legacy SKUs. Price, full range, supply, materials, certification and lead time not stated in the catalog require written confirmation for the complete configuration.
